Wide Area Network (WAN) concepts are an important part of CCNA preparation because they explain how organizations connect branches, data centers, cloud services, and remote users across geographic distances. Modern WAN study should focus on current connectivity, routing, security, and software-defined designs rather than obsolete technologies.
What Is a WAN?
A WAN connects networks across cities, countries, or other large areas. A service provider usually supplies part of the transport infrastructure. The enterprise then uses routers, security devices, and policies to connect local networks to that service safely and reliably.
Common WAN Connectivity Options
- Leased lines: dedicated point-to-point connectivity with predictable performance.
- MPLS: provider-managed private connectivity between multiple sites.
- Broadband internet: cable, fiber, or DSL used with secure tunnels.
- Cellular: 4G or 5G connectivity for primary, backup, or temporary access.
- Cloud connectivity: VPNs or dedicated connections to cloud platforms.
- SD-WAN: centralized policy and intelligent use of multiple transports.
WAN Devices and Demarcation
The customer edge (CE) device belongs to or is managed for the customer, while the provider edge (PE) device sits in the service-provider network. The demarcation point identifies where customer responsibility ends and provider responsibility begins. Understanding these roles helps isolate faults during troubleshooting.
How Routing Works Across a WAN
Branches may use static routes, default routes, or dynamic routing protocols depending on size and design. A small site often sends all nonlocal traffic through a default route. Larger environments may exchange routes dynamically and use route summarization, filtering, and path preferences to control traffic.
VPN and WAN Security Basics
Internet-based WAN links normally require encryption. Site-to-site IPsec VPNs protect traffic between locations, while remote-access VPNs connect individual users. Security design should also include authentication, access controls, device hardening, logging, and redundancy.
What Is SD-WAN?
Software-defined WAN separates centralized policy and management from packet forwarding. It can select paths based on application requirements, link quality, cost, and policy. An SD-WAN deployment may combine broadband, leased circuits, MPLS, and cellular links while providing centralized visibility.
Legacy WAN Topics

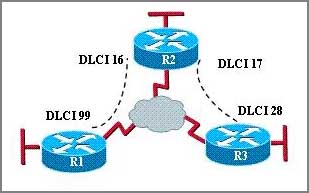

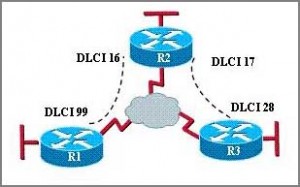

Older CCNA resources often include Frame Relay, ISDN, ATM, and legacy serial encapsulations. These technologies can provide historical context, but they should not replace study of the current official objectives. Always compare older questions with the latest Cisco blueprint.
WAN Troubleshooting Checklist
- Check interface status, addressing, and physical connectivity.
- Confirm the default route or dynamic routing information.
- Test reachability to the provider next hop.
- Review NAT, access lists, VPN status, and security policies.
- Check latency, packet loss, jitter, and bandwidth utilization.
- Compare results across primary and backup paths.
Frequently Asked Questions
Is the internet a WAN?
Yes. It is the world’s largest interconnected wide area network, although enterprise WAN services can also be private.
Is Frame Relay still a primary CCNA topic?
No. It is a legacy technology. Prioritize the current Cisco exam objectives and modern WAN designs.
Where can I practice more networking questions?
